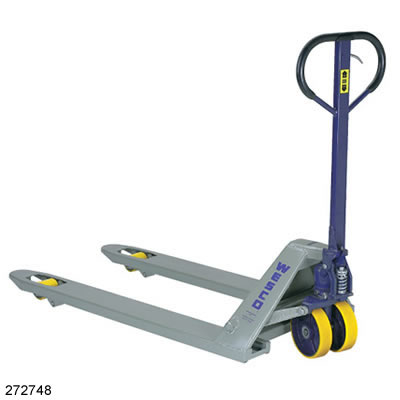

Wesco Standard Deluxe Pallet Truck – 5,500 lb Capacity

The Wesco Standard Deluxe Pallet Truck is a heavy-duty 5,500-lb manual hydraulic pallet truck with a 5-year pump warranty and a built-in overload bypass to protect against exceeding the rated capacity. Travel range is 3" lowered to 8" raised. The 200° steering radius provides maneuverability in tight areas. Eight-inch moldon polyurethane steering wheels and 3" moldon polyurethane load wheels provide smooth, consistent rolling across facility floors. Rubber-coated handles provide a comfortable grip, and the 6" wide heavy-gauge forks are reinforced for reliable load support.

Six models are available across two fork widths (21" and 27") and three fork lengths (36", 42", and 48"). All models share the same 5,500-lb capacity, travel range, and specifications.

Models and Specifications:

♦ 272136, 21" W, 36" L forks. Capacity 5,500 lbs. Travel 3" to 8". Overload bypass. 5-year pump warranty. 200° steering radius. 8" moldon polyurethane steer wheels, 3" moldon polyurethane load wheels. Rubber-coated handle. 6" wide heavy-gauge forks.

♦ 272142, 21" W, 42" L forks. Capacity 5,500 lbs. Same specification as 272136 at a greater fork length.

♦ 272148, 21" W, 48" L forks. Capacity 5,500 lbs. Same specification as 272136 at greatest fork length. The longest narrow-fork model.

♦ 272736, 27" W, 36" L forks. Capacity 5,500 lbs. Travel 3" to 8". Overload bypass. 5-year pump warranty. 200° steering radius. 8" moldon polyurethane steer wheels, 3" moldon polyurethane load wheels. Rubber-coated handle. 6" wide heavy-gauge forks. Wide fork, shortest length.

♦ 272742, 27" W, 42" L forks. Capacity 5,500 lbs. Same specification as 272736 at a greater fork length.

♦ 272748, 27" W, 48" L forks. Capacity 5,500 lbs. Same specification as 272736 at greatest fork length. The longest wide-fork model.

Selecting the Right Model:

♦ Fork width, 21" or 27", the 21" wide models suit pallets with 21" or standard narrower entry openings. The 27" wide models provide a broader fork spread for pallets that require or benefit from a wider fork width for lateral stability. Both widths are available at all three fork lengths.

♦ Fork length: 36", 42", or 48"; select based on the pallet depth in the operation. Standard GMA pallets are 40" deep, making the 42" or 48" models the typical choice for full-depth pallet engagement. The 36" models suit shorter custom pallets or applications where compact truck length improves maneuverability in tight spaces.

♦ 5-year pump warranty: A meaningful long-term value indicator. Most standard pallet truck pump warranties run 1 year or less. The 5-year coverage reflects Wesco's confidence in the hydraulic pump's service life under normal operating conditions.

♦ Overload bypass: The built-in overload bypass prevents lifting beyond the 5,500 lb rated capacity. This protects the hydraulic system from damage and operators from hazardous overloading.

♦ Wesco Standard Deluxe vs. Bishamon BS-Series: the Wesco Standard Deluxe offers a 5-year pump warranty and moldon polyurethane wheels. The Bishamon BS-Series offers a fully rebuildable design and a wider selection of fork length and width combinations, including 6,500-lb and 2,500-lb options. Choose based on whether pump warranty or rebuildability is the higher priority for your operation.

Where Commonly Used:

♦ Warehouse and Distribution Pallet Transport: Warehouse and distribution operations moving pallets between receiving, storage, picking, and shipping positions use the Wesco Standard Deluxe for reliable 5,500 lb manual pallet transport with consistent hydraulic performance backed by the 5-year pump warranty.

♦ Loading Dock Pallet Handling, shipping and receiving departments loading and unloading palletized freight at dock positions use the Standard Deluxe for efficient manual pallet transport at the dock face, where the 200° steering radius supports maneuvering in tight dock-area spaces.

♦ Retail and Stockroom Pallet Movement, retail stockrooms and backroom operations handling palletized inbound deliveries use the Standard Deluxe for straightforward manual pallet transport in confined stockroom layouts where compact, low-maintenance equipment is the appropriate tool.

♦ Production and Staging Area Pallet Supply: Production support areas supplying raw materials, components, and sub-assemblies on pallets to production positions use the Standard Deluxe for routine pallet transport where powered equipment is not required for the volume or distance involved.

CustomMHS is an authorized Wesco distributor. All purchases include the manufacturer's factory warranty.
